Description

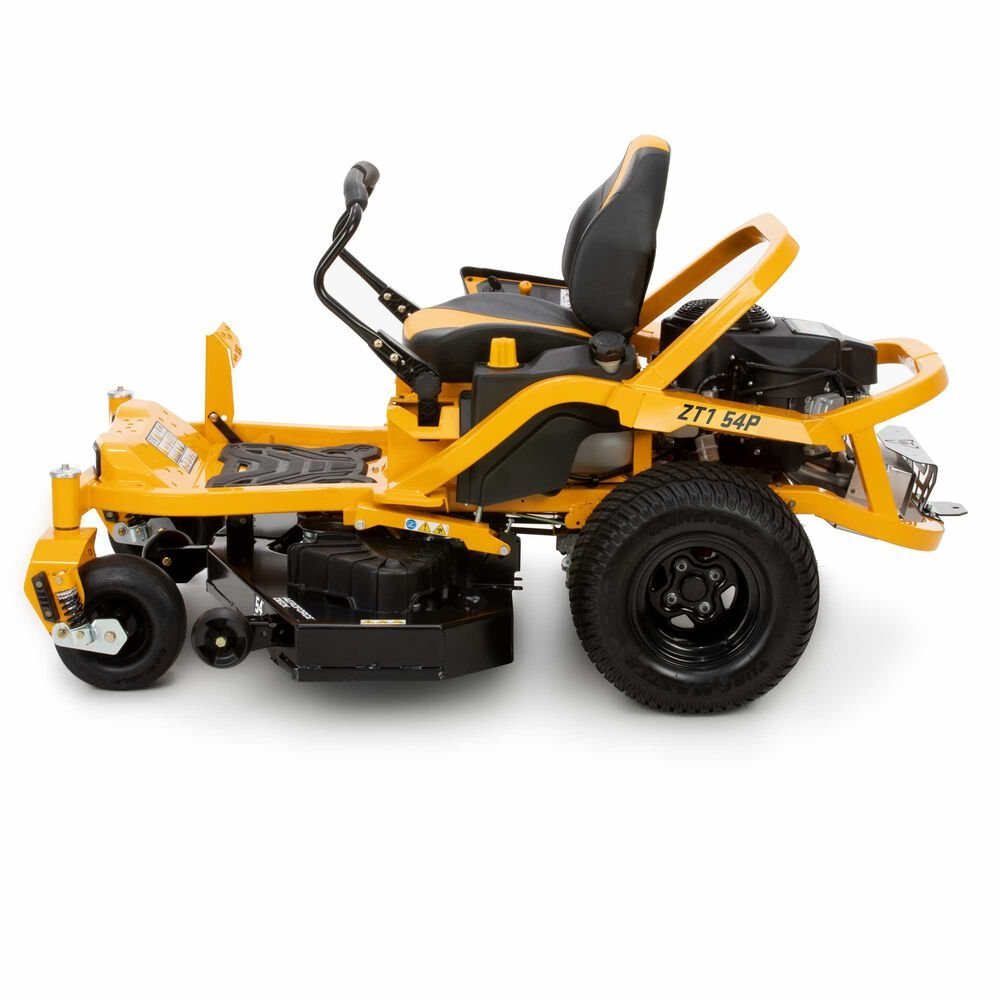

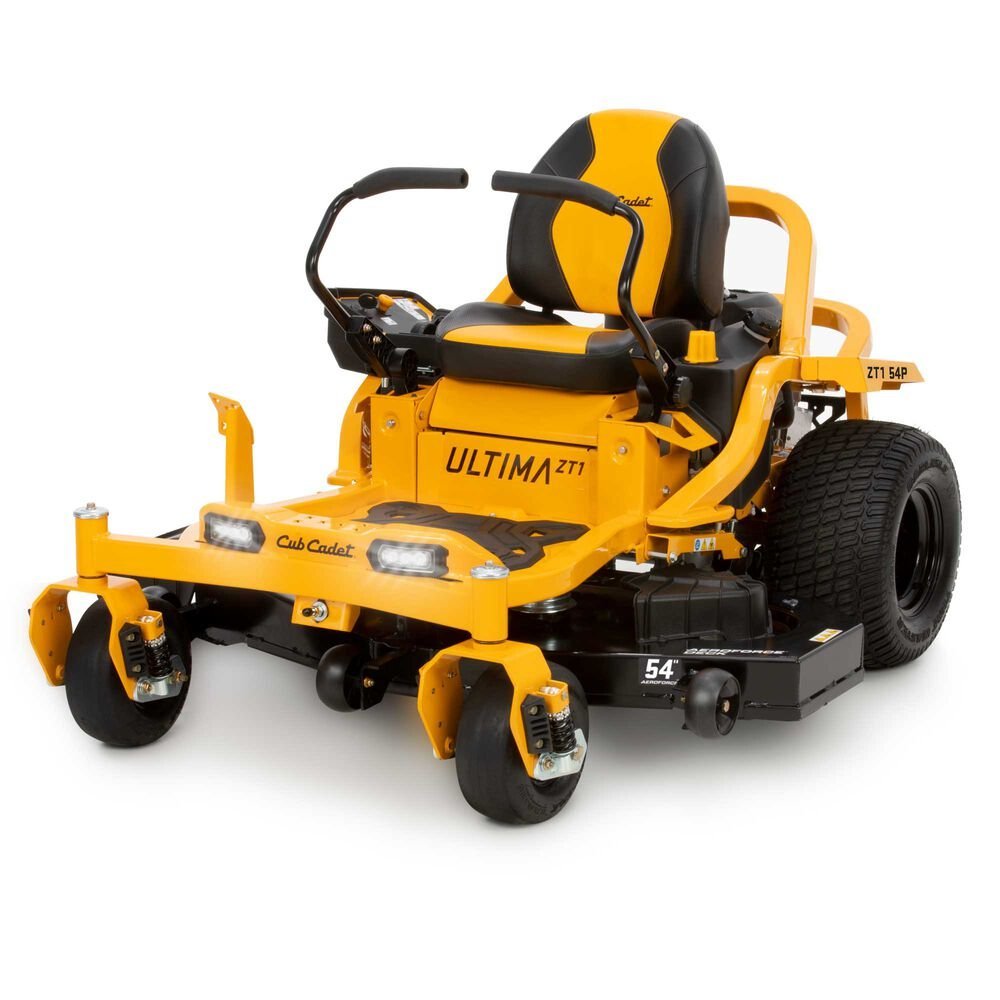

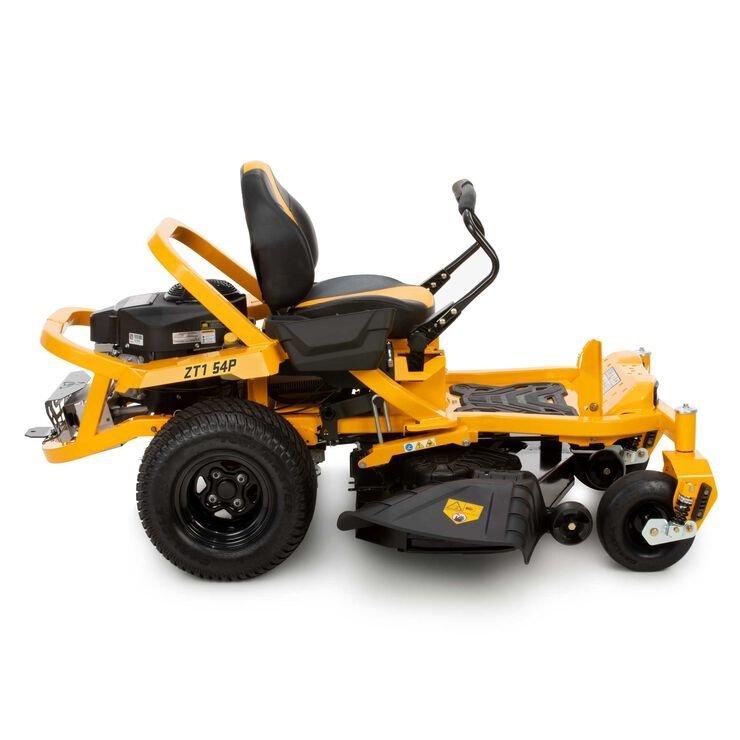

Cub Cadet Ultima ZT1 54 P Zero Turn
FEATURES:

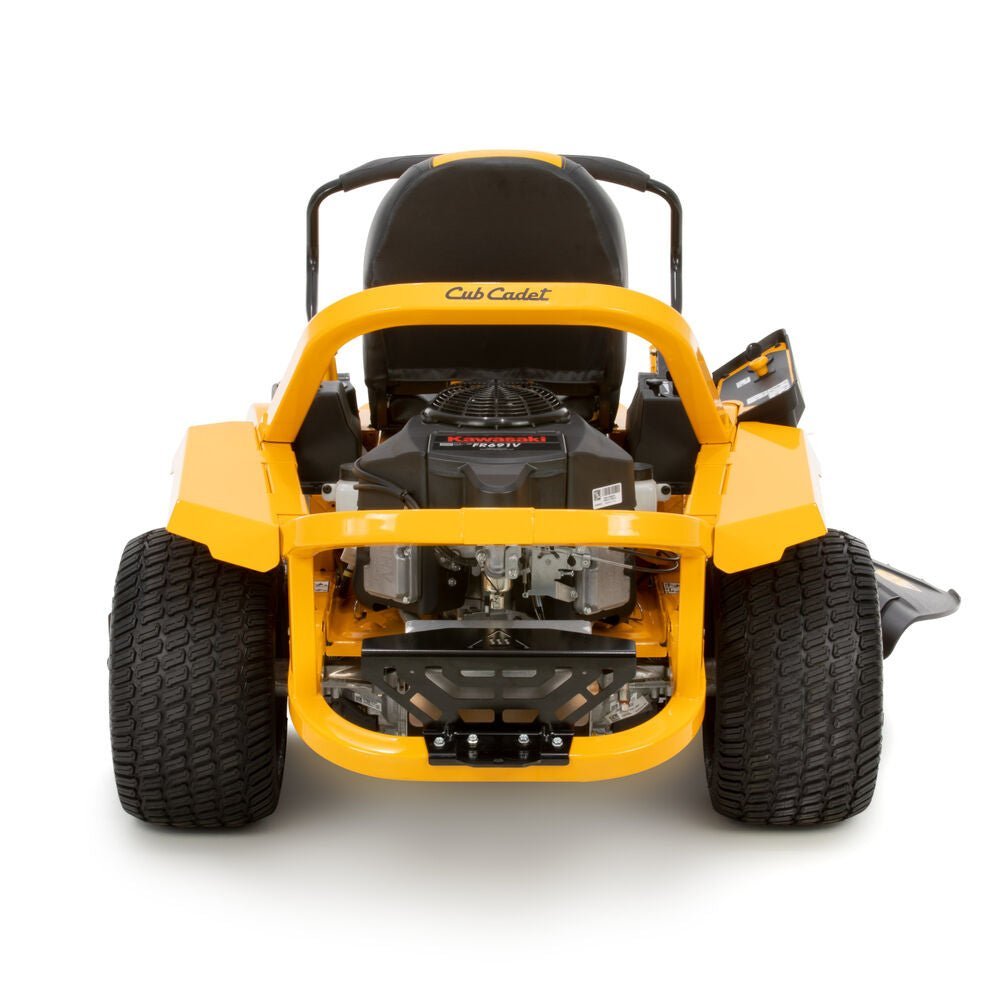

23 HP/726cc Kawasaki FR691V V-Twin OHV 4-Cycle Engine
- 90° V-twin achieves a perfect primary balance
- Internally vented carburetor with fuel shut-off solenoid
- Automatic compression release for easier starts & less wear
Dual Hydro-Gear™ 2200 (EZT™) Hydrostatic Drive System
- Fan cooled 10cc pumps and wheel motors on each drive wheel
- Provides optimal torque and speeds up to 7 MPH
ZT1 54P Additional High-Performance Features
- Steel fenders for added protection

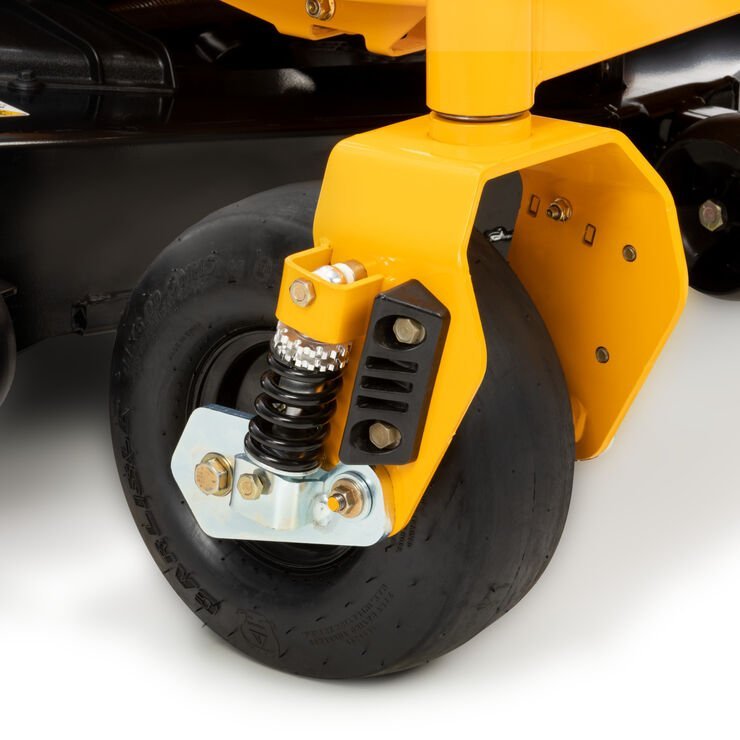

- Larger rear wheels and front caster suspension improve stability
- Includes floor mat for vibration reduction and removable floor pan

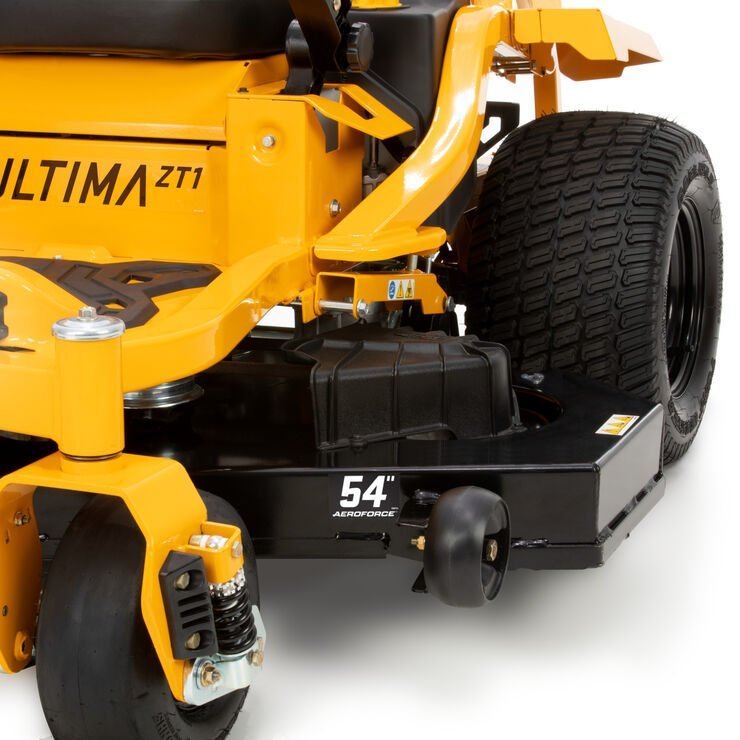

54-Inch, Fabricated (Welded) 3-Blade Mower Deck
- 15 cut heights ranging from 1 – 4.5″
- Features Cub Cadet’s best-in-class Aeroforce Cutting System
- Optimizes airflow and suction for better bagging and cut quality
A Real Steel
- Frame is designed using durable squared tubular steel
- Reduces chassis flex for a more even cut and increased stability

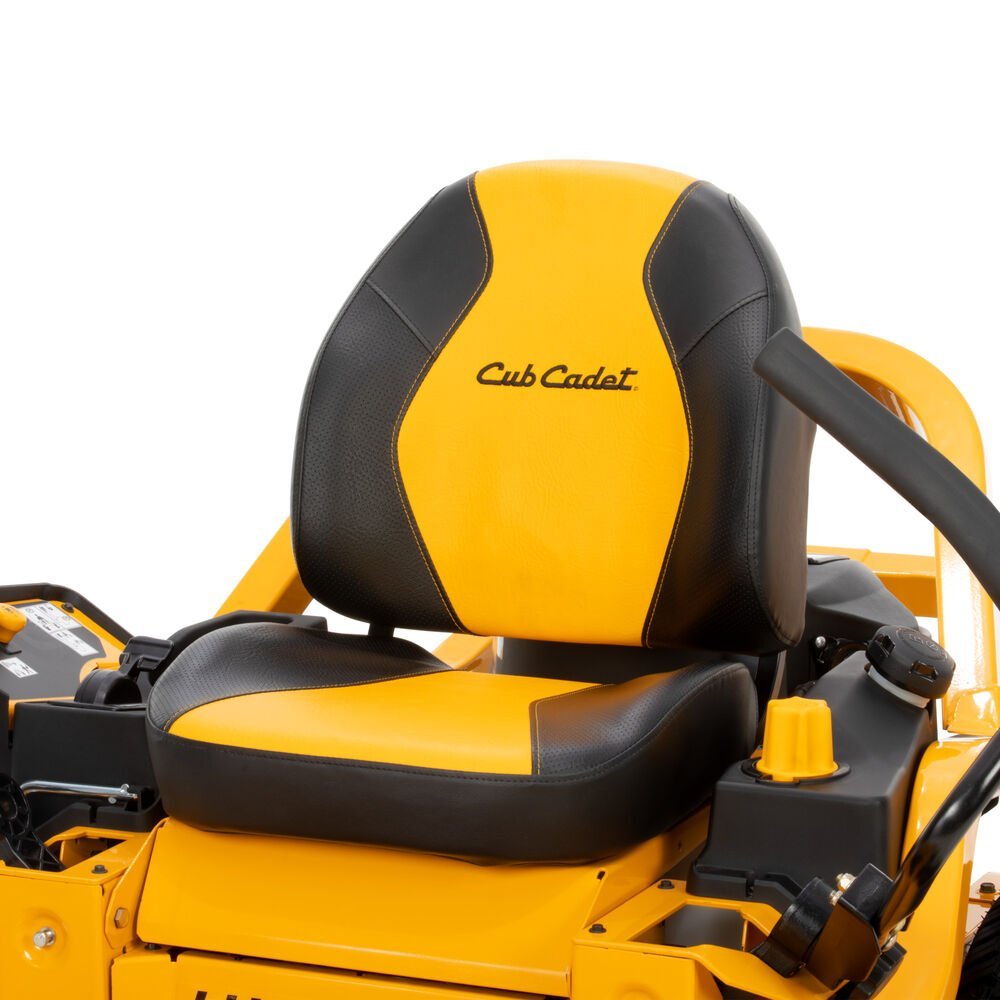

Automotive-Inspired Seat
- Ergonomic, comfortable 20″ high-back seat with suspension
- Fully adjustable and optimized to reduce riders fatigue
Adjustable Lap Bars
- Accommodates riders of all shapes and sizes
- Easily and quickly set lap bars into 1 of 3 positions
Mow-in-Reverse
- Helps you quickly position mower to cut trickier spots

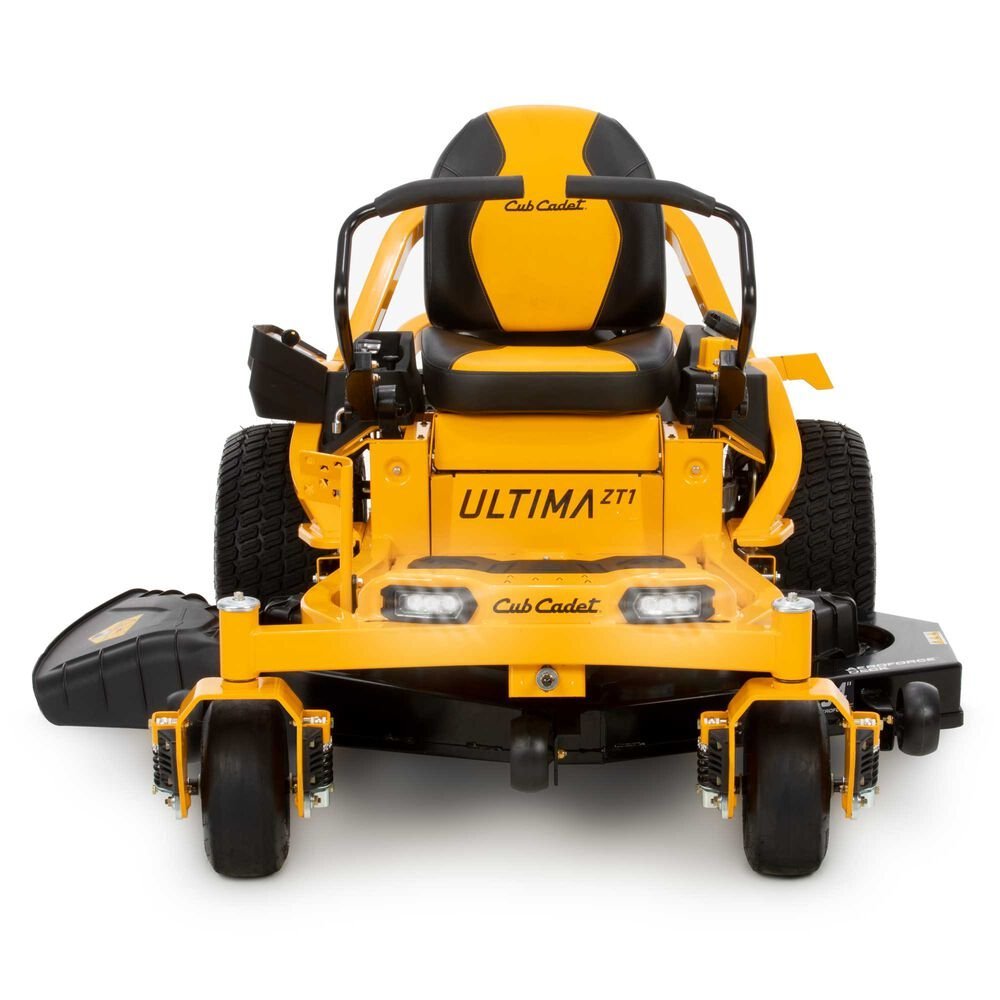

LED The Way
- Dual-LED headlights for unmatched visibility in low light

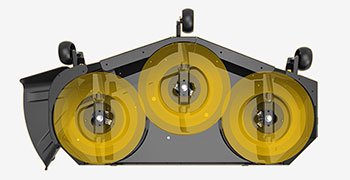

AEROFORCE DECK
(CLICK ON PHOTO FOR MORE INFO)
SPECS:
Engine
- Engine BrandKawasaki®
- Engine ModelFR Series
- Engine Model Number691V
- Engine Displacement726cc
- Engine Output23HP
- Starter TypeElectric
- Fuel Tank Capacity5 gal. US (13.25 L)
- CylindersTwin
- Engine StartIgnition Key
- Engine Oil Capacity1 qt US ( 2 L)
- LubricationFully pressurized
- Charging System15 amp regulated
- Fuel GaugeNo
- GovernorMechanical
- ChokeSeparate Choke
- Air FilterDual element
- Oil FilterYes
- Fuel DeliveryCarburetor
Battery
- Battery210 CCA
- Battery TypeAGM (Absorbent Glass Mat)
- Battery Voltage12V
Drive System
- TransmissionHydro-Gear EZT 2200
- Forward Speed7 MPH / 11.3 km/h
- Reverse Speed5 MPH / 5.6 km/h
- Drive SystemHydrostatic
Cutting Deck
- Deck Cutting Width54 in
- Deck WashNo
- Deck Material11-gauge steel
- Deck Engagement (PTO)Electric
- Deck ConstructionFabricated
- Blade(s)Three
- Deck LiftFoot pedal with Dial Adjust
- Cutting Height Range1” – 4.5”
- Anti-ScalpingThree gauge wheels
- Deck Positions15
Warranty
- Warranty3-year unlimited hours
- Frame WarrantyLifetime Limited
- Deck Shell WarrantyLifetime limited
- Commercial WarrantyNo
Chassis
- Frame2” x 2” tubular steel
- Turning Radius0°
- ROPSNo
- Rear Tow HitchYes
- Corrosion ProtectionYes
Controls
- Cruise ControlNo
- BrakesDisc
- Steering ControlLap Bars
Comfort
- Seat Type20″ high back
- ArmrestsNo
- Seat AdjustmentKnob

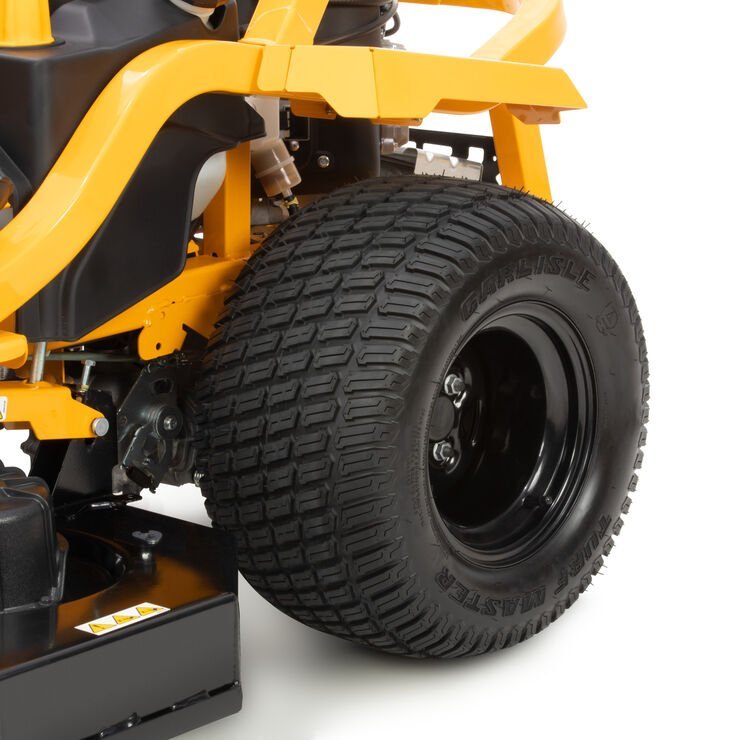

Wheels
- Rear Tires20”x 12”- 8”
- Front Tires11″x 6″-5″
- Tire TreadTurf Master / Multi Trac
Additional Specifications
- Hour MeterNo
- Mulch KitAvailable separately
- Headlight(s)Dual-LED
- Cup HolderYes
- Operator Presence SystemYes
- Parking BrakeLap Bar Integrated
- Model Number17AIEACMA10
Specifications
- SeriesUltima Series™ ZT
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
